Description

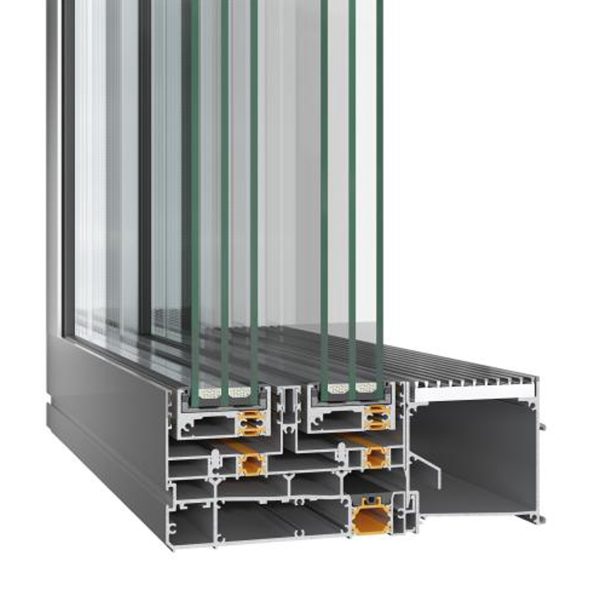

The SUPREME S650 PHOS sliding thermal insulation system is the ideal choice for covering large openings with the minimization of the visible aluminum frame. A characteristic feature of the system is the enhancement of natural light through the large glass surfaces, offering high functionality, performance and minimal architectural design. The system is available in 3 versions for floor, underfloor or completely concealed installation of the slider (Eclipse).
Profiles
Specifications
Slider height | 35/59 mm |
Slider width | 164 mm |
Minimum visible construction height | 0 mm, possibility of complete embedding |
Panel height | 22/32 mm |
Panel width | 62 mm |
Hook width | 25 mm |
Glass thickness | 35/45 mm |
Maximum panel weight | up to 1000 kg |
Thermal insulation | Polyamides, PVC |
Performance
Thermal insulation | (EN 10077-2) | UW=1,1 W/m2K |
Watertightness | (EN 1027, EN 12208) | CLASS 9Α |
Air permeability | (EN 1026, EN 12207) | CLASS 4 |
Wind pressure resistance | (EN 12210, EN 12211) | CLASS C5 |
Burglary resistance | (EN 1267-1630) | RC2 |
Soundproofing | (EN 14351, EN 717) | RW(C,Ctr)= 46 dB |
